MBBR WasteWater treatment machine
Products Description
MBBR WasteWater treatment machine
Product Brief
- Power:1kW to 17.7kW (based on different models)
- Applications:Gas stations, service areas, remote fueling facilities, rural sewage treatment projects, small town sewage treatment plants, urban and river sewage treatment, medical wastewater, hotels, resorts
- Configuration:Adopts AAO+MBBR or AAO+MBR process, Q235 carbon steel tank with corrosion-resistant coating, reinforced hollow fiber membrane module, PLC automatic control, UV disinfection system
Why Choose Us?
- 30+ years of long service life
- 40% energy saving compared to traditional systems
- Unattended smart operation
- Compact integrated design saves land space
- 9% bacteria killing rate with UV disinfection
Product Overview

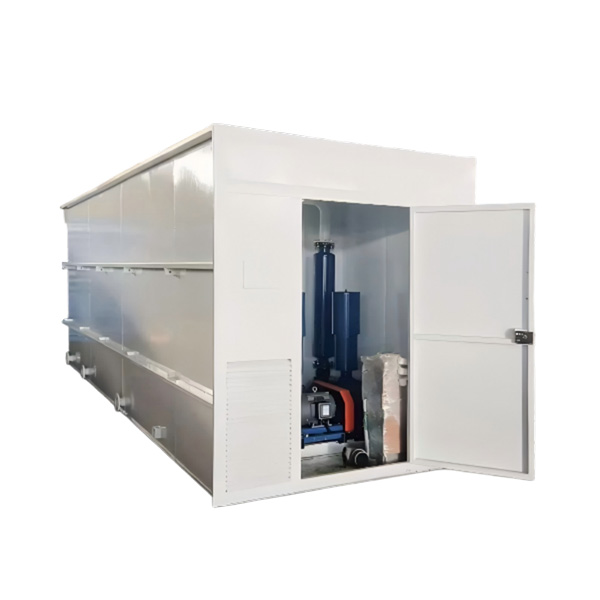

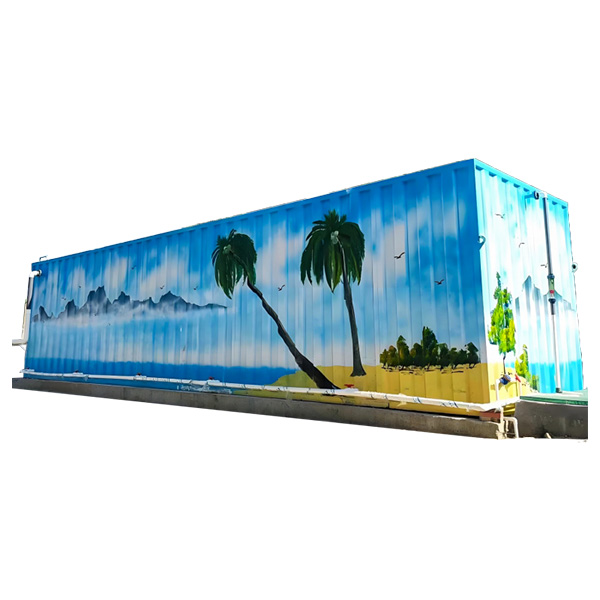

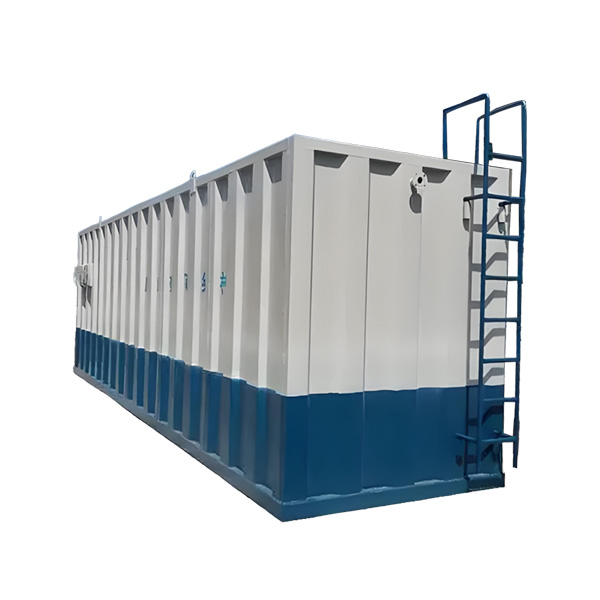

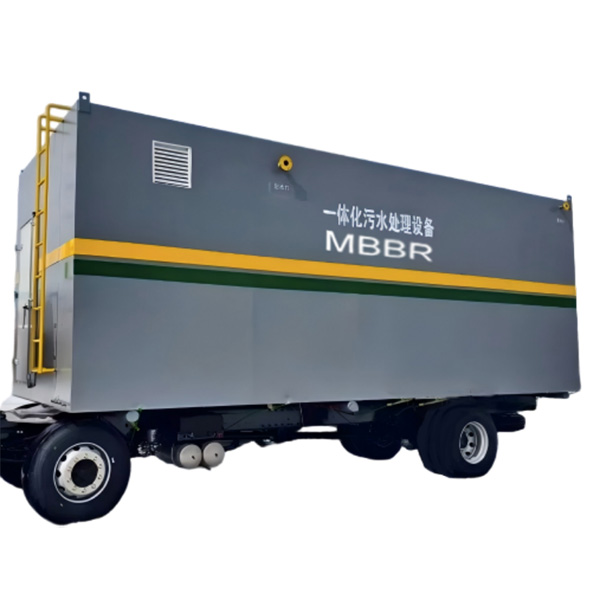

This is a containerized above-ground sewage treatment system. It uses advanced MBBR technology. The system efficiently degrades organic pollutants even when water loads fluctuate.
This system targets overseas distributors, project contractors, and operators of sites without centralized sewage infrastructure. It solves the core problem of sewage treatment in areas lacking centralized sewage systems. It helps users meet environmental discharge standards. It also supports sustainability goals. It replaces traditional sewage treatment systems that need complex civil construction and large land space.
Feature Highlights
- Long Service Life
The tank is made of Q235 carbon steel. It has a corrosion-resistant spray coating. The service life is more than 30 years. - High Efficiency & Energy Saving
The core membrane module uses reinforced hollow fiber membranes. These membranes have strong acid and alkali resistance. They also have high pollution resistance and good regeneration effect. The system saves about 40% energy compared to traditional plate membrane systems. It has lower aeration erosion and energy consumption. - Highly Integrated Design
The membrane tank is separated from the aerobic tank. It also functions as an offline cleaning tank. The integrated design saves land space. - Short Construction Period
Only ground hardening is needed for civil construction. The construction period is shortened by more than 2/3 compared to traditional systems. - Intelligent Control
The system uses PLC automatic control. Operation and maintenance are simple. It supports both offline and online cleaning control. - Safe Disinfection
The system uses UV disinfection. UV disinfection has strong penetration. It can kill 99.9% of bacteria. It leaves no residual chlorine and causes no secondary pollution. - Flexible Selection
We can design the system according to different water quality and quantity requirements. This makes the selection more accurate.
Technical Specifications
| Process | AAO+MBBR
|
AAO+MBBR
|
AAO+MBBR
|
AAO+MBR
|
AAO+MBR
|
AAO+MBR
|
| Processing Capacity (m³/d) | ≤30 | ≤50 | ≤100 | ≤100 | ≤200 | ≤300 |
| Size (m) | 7.6*2.2*2.5 | 11*2.2*2.5 | 12.4*3*3 | 13*2.2*2.5 | 14*2.5*3 +3*2.5*3 | 14*2.5*3 +9*2.5*3 |
| Weight (t) | 8 | 11 | 14 | 10 | 12 | 14 |
| Installed Power (kW) | 1 | 1.47 | 2.83 | 6.2 | 11.8 | 17.7 |
| Operating Power (Kw·h/m³) | 0.6 | 0.49 | 0.59 | 0.89 | 0.95 | 1.11 |
| Effluent Quality | COD≤100,BOD5≤20,SS≤20,NH3-N≤8,TP≤1 | COD≤100,BOD5≤20,SS≤20,NH3-N≤8,TP≤1 | COD≤100,BOD5≤20,SS≤20,NH3-N≤8,TP≤1 | COD≤100,BOD5≤20,SS≤20,NH3-N≤8,TP≤1 | COD≤100,BOD5≤20,SS≤20,NH3-N≤8,TP≤1 | COD≤100,BOD5≤20,SS≤20,NH3-N≤8,TP≤1 |
| Renewable Energy Option | Solar energy / wind energy (optional) | Solar energy / wind energy (optional) | Solar energy / wind energy (optional) | Solar energy / wind energy (optional) | Solar energy / wind energy (optional) | Solar energy / wind energy (optional) |
Applications
Gas Stations
This system treats sewage from gas station daily operations. It ensures effluent meets local discharge standards. It helps gas stations comply with environmental regulations.
Rural Sewage Treatment
This system handles sewage in rural areas without centralized sewage systems. It supports environmental improvement in rural communities. It provides a compact and efficient treatment solution.
Service Areas & Resorts
This system treats sewage from highway service areas and resorts. It maintains a clean environment for visitors. It is easy to install in these remote locations.
Small Town Sewage Plants
This system provides a compact sewage treatment solution for small towns. It fits limited land space. It helps small towns meet sewage treatment needs without large construction projects.
Medical Wastewater & Hotels
This system treats wastewater from medical facilities and hotels. It ensures safe discharge of wastewater. It protects public health and the environment.
Customization Options
- Custom Processing Capacity: We can customize the system with processing capacity beyond the standard range (≤30m³/d to ≤300m³/d) based on your specific needs.
- Custom Process Design: We can adjust the process (AAO+MBBR or AAO+MBR) according to your local water quality requirements.
- Custom Size & Layout: We can customize the container size and internal layout to fit your installation space.
- Renewable Energy Configuration: We can add solar or wind energy systems to the unit for further energy saving.
FAQ
- How long is the service life of this system?
The system has a service life of more than 30 years. This is due to the Q235 carbon steel tank with corrosion-resistant coating. - How much energy can this system save?
It saves about 40% energy compared to traditional plate membrane systems. It has lower aeration energy consumption. - Does this system support unattended operation?
It uses PLC automatic control. It supports unattended operation. It also has offline and online cleaning control functions. - What is the construction period for this system?
The construction period is shortened by more than 2/3 compared to traditional systems. Only ground hardening is needed for civil construction. - Can this system be customized?
We support customization of processing capacity, process design, size, and renewable energy configuration. Non-standard tonnages are also available.
